Low Order

The LX range is a family of self-fill low order deflagrators and disruptors for controlled IED/UxO neutralisation on land or at sea to 300m.

The Challenge

Deliver low order effects, precisely placed, under pressure.

Operators are regularly required to neutralise suspect items while controlling effects and working within real-world constraints:

Choosing an option that isn’t “high order by default” when the task calls for lower effects;
Accurate placement and aiming on the target, often in poor visibility or complex environments;
Reliable initiation with methods suited to the situation (manual, coded RF, acoustic) and compatible detonation options;
Working across land and subsea tasks, where stability and handling matter (including buoyancy considerations);
Keeping logistics simple, with equipment that is transportable and practical to prepare on-task.

Low Order Key features & benefits

What Low Order solves

Across the range, LX systems combine self-fill convenience, non-magnetic construction, buoyancy-neutral handling, and CobraMDS Placement Unit integration, with NONEL or electric detonation and compatibility with ECS initiation methods (manual, coded RF, acoustic), plus support for accurate aiming via the ECS Expendable Targeting Laser.

Convenient, cost-effective and easily transportable self-filled systems designed to be straightforward to prepare in the field.

Designed specifically for low order neutralisation; LX-30 and LX-50 use an aluminium/magnesium combination to achieve low order deflagration using the Miznay Shardin effect (directly or through an intermediate medium), while LX-420 uses an aluminium/gel approach for low order neutralisation.

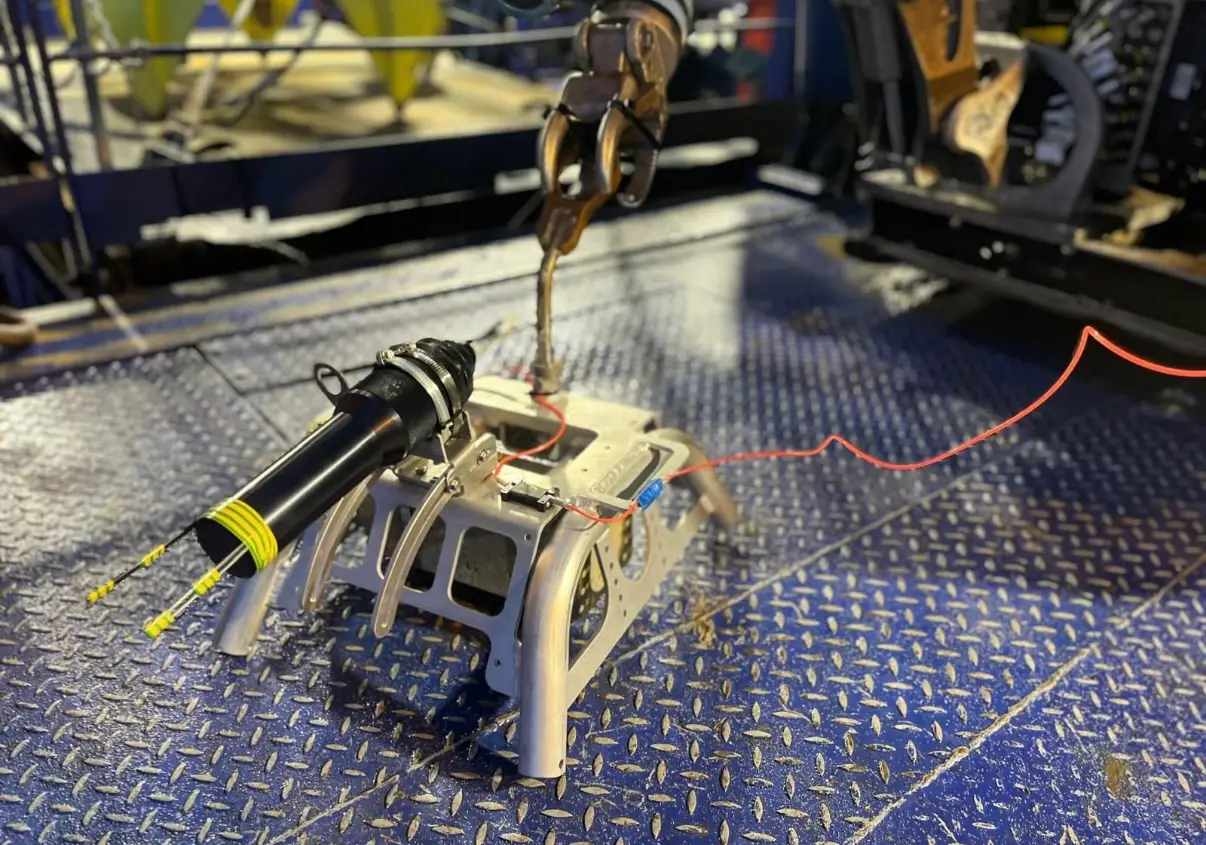

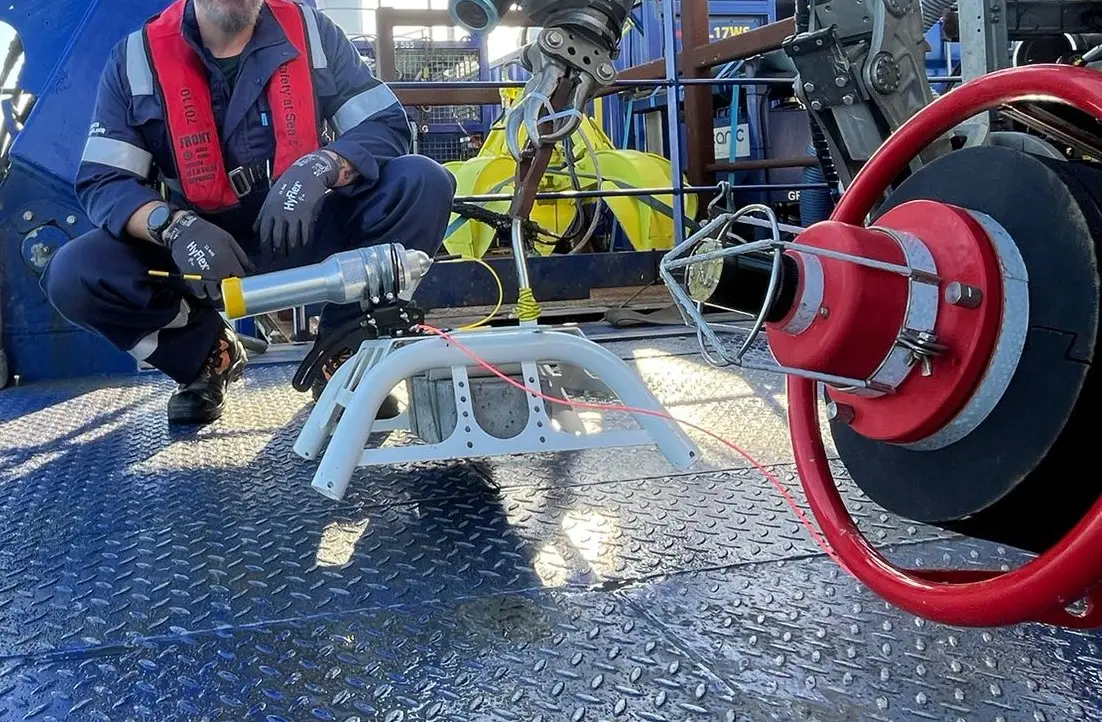

Fully integrated with the CobraMDS Placement Unit for repeatable placement; compatible with the ECS Expendable Targeting Laser to support accurate aiming.

NONEL or electric detonation with multiple initiation options (manual, coded RF, acoustic), suitable for use on land or sea down to 300m.

Low Order Key Specifications

Performance Parameters

The LX range scales from compact, lightweight low order deflagrators through to a larger-format low order disruptor, while maintaining common operational fundamentals: non-magnetic construction, buoyancy-neutral performance, self-fill convenience, CobraMDS Placement Unit integration, NONEL/electric detonation, and multi-method initiation to 300m.

Product Options

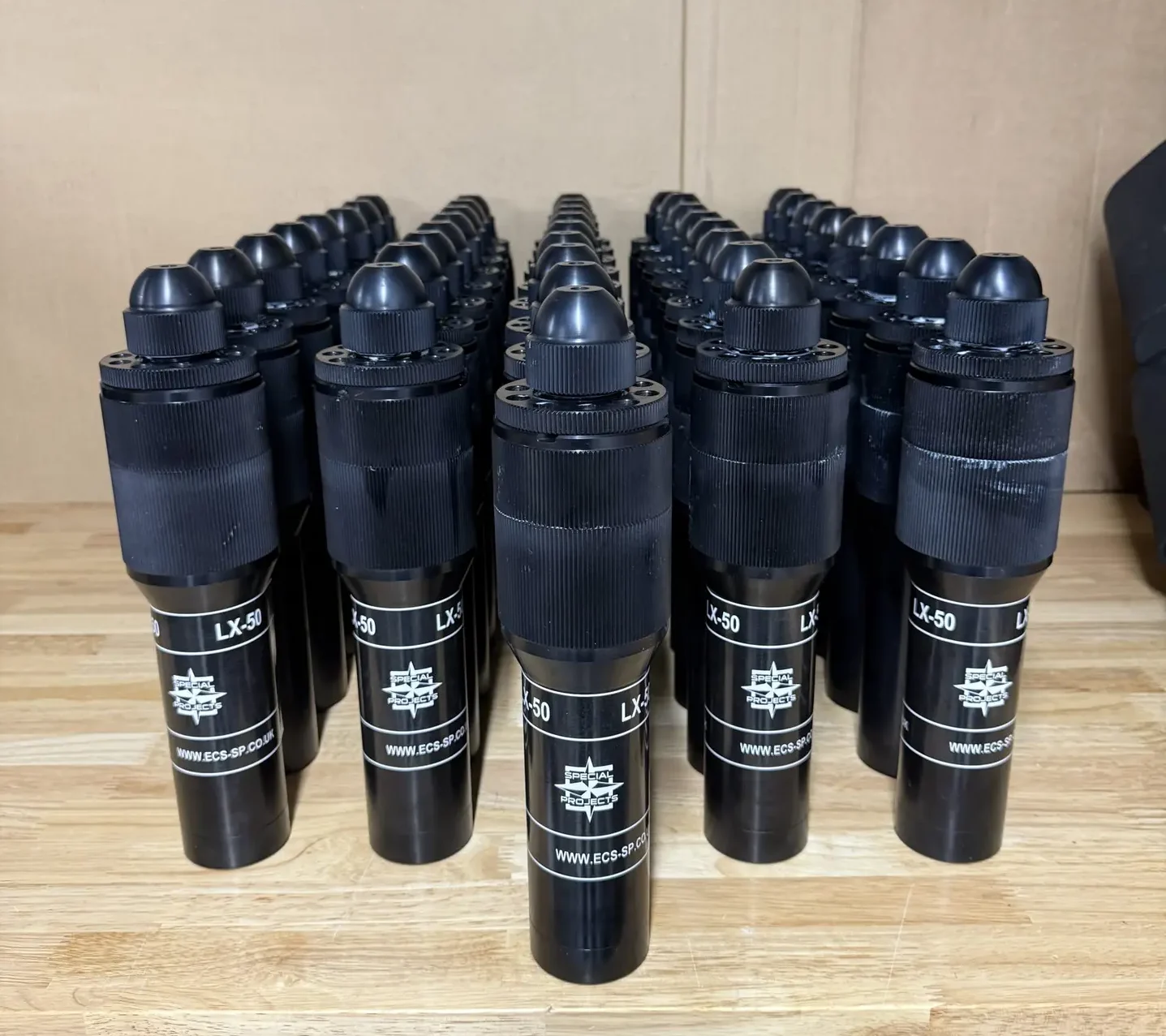

LX-30 Low Order Deflagrator; LX-50 Low Order Deflagrator; LX-420 Low Order Disruptor.

Operational Depth

0–300m (including surface operation where specified).

Initiation & Detonation

Detonation: NONEL or electric; initiation methods: manual initiation, coded RF, acoustic.

NEQ Range

Variable NEQ across the family: 30–50g (LX-30); 150–250g (LX-50); 1kg (LX-420).

Dimensions & Weight

Scaled formats: 170mm x 55mm dia, ~250g (LX-30); 190mm x 65mm dia, ~350g (LX-50); 420mm x 100mm, ~1150g (LX-420).

Materials & Liners

Non-magnetic aluminium construction across the range; liners vary by application, including aluminium/magnesium EFP penetrator combinations (LX-30/LX-50) and aluminium/gel-filled liners (LX-420).

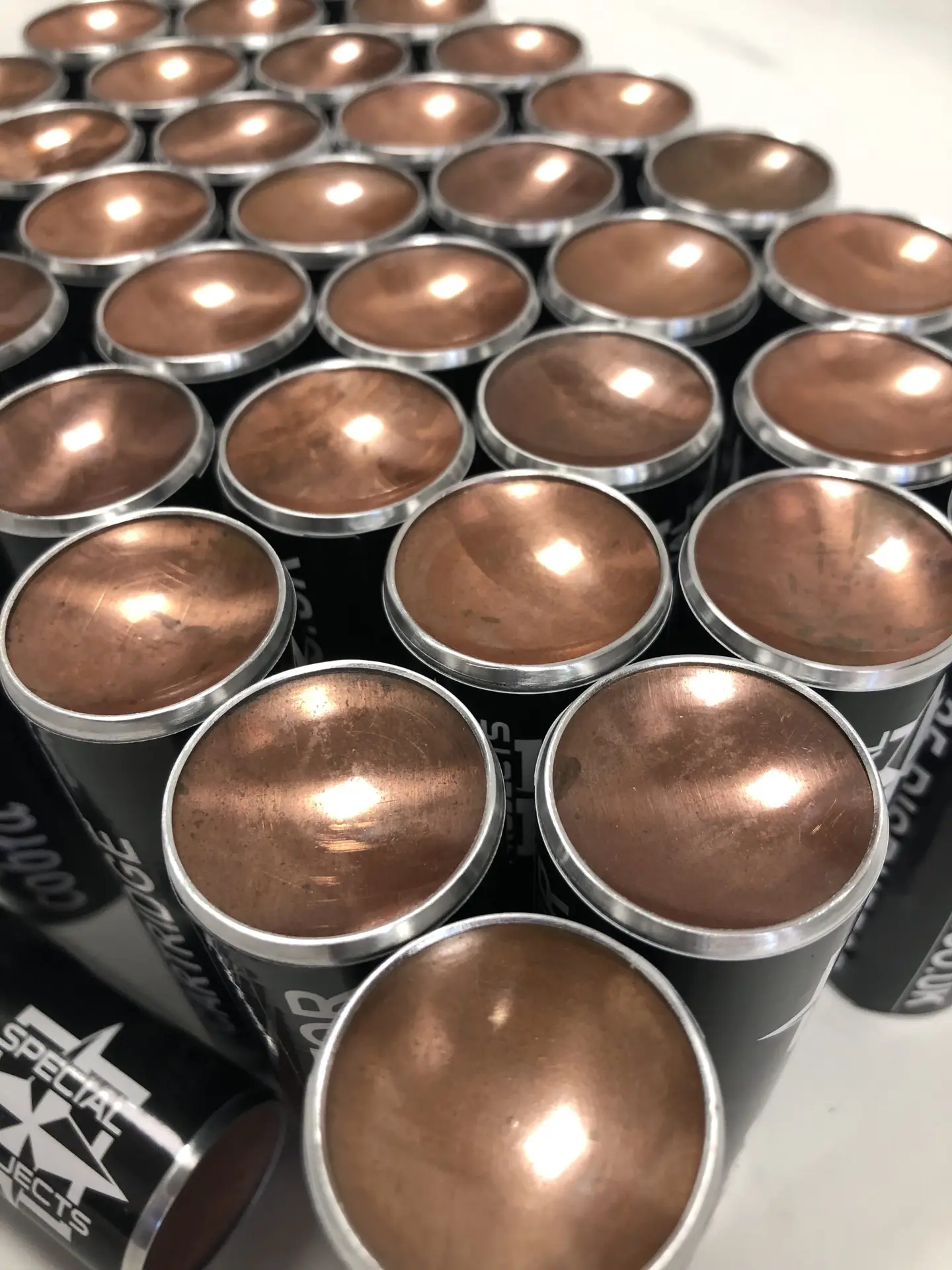

Gallery

The bigger picture

A scalable low order neutralisation family (from 30g to 1kg NEQ) that’s self-fill, buoyancy-neutral and non-magnetic, fully integrated with CobraMDS placement and laser aiming, and compatible with NONEL/electric detonation plus manual, coded RF or acoustic initiation methods for land or sea operations to 300m.

Contact us

Get in touch to learn more about Low Order
